Noctua NH-L9x65, Premium Low-Profile CPU Cooler (65mm, Brown)

Name: Noctua NH-L9x65, Premium Low-Profile CPU Cooler (65mm, Brown)
SKU: B00VB3Y89E
Price: 68 USD
Availability: InStock

【商品番号】

【商品状態・保証】新品｜12 ヶ月保証付き

$68.00 USD

決済する時に送料が計算します

数量

当店では接続端子の無料交換サービスを提供しております。
写真をご提供いただいてからご注文ください。あらかじめご了承ください。

必ず、ご注意：

お支払い方法

配送について

製品保証と返金について

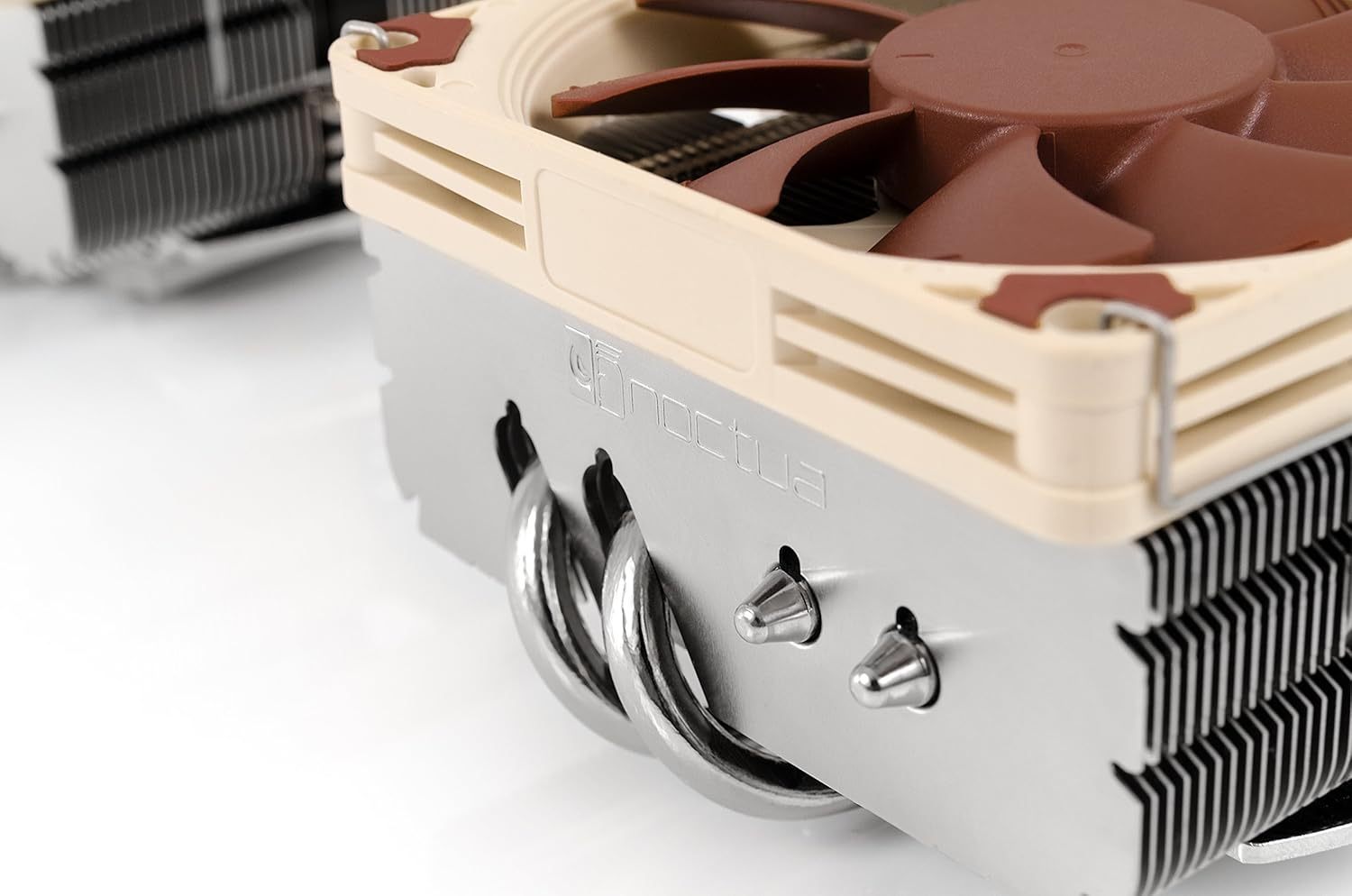

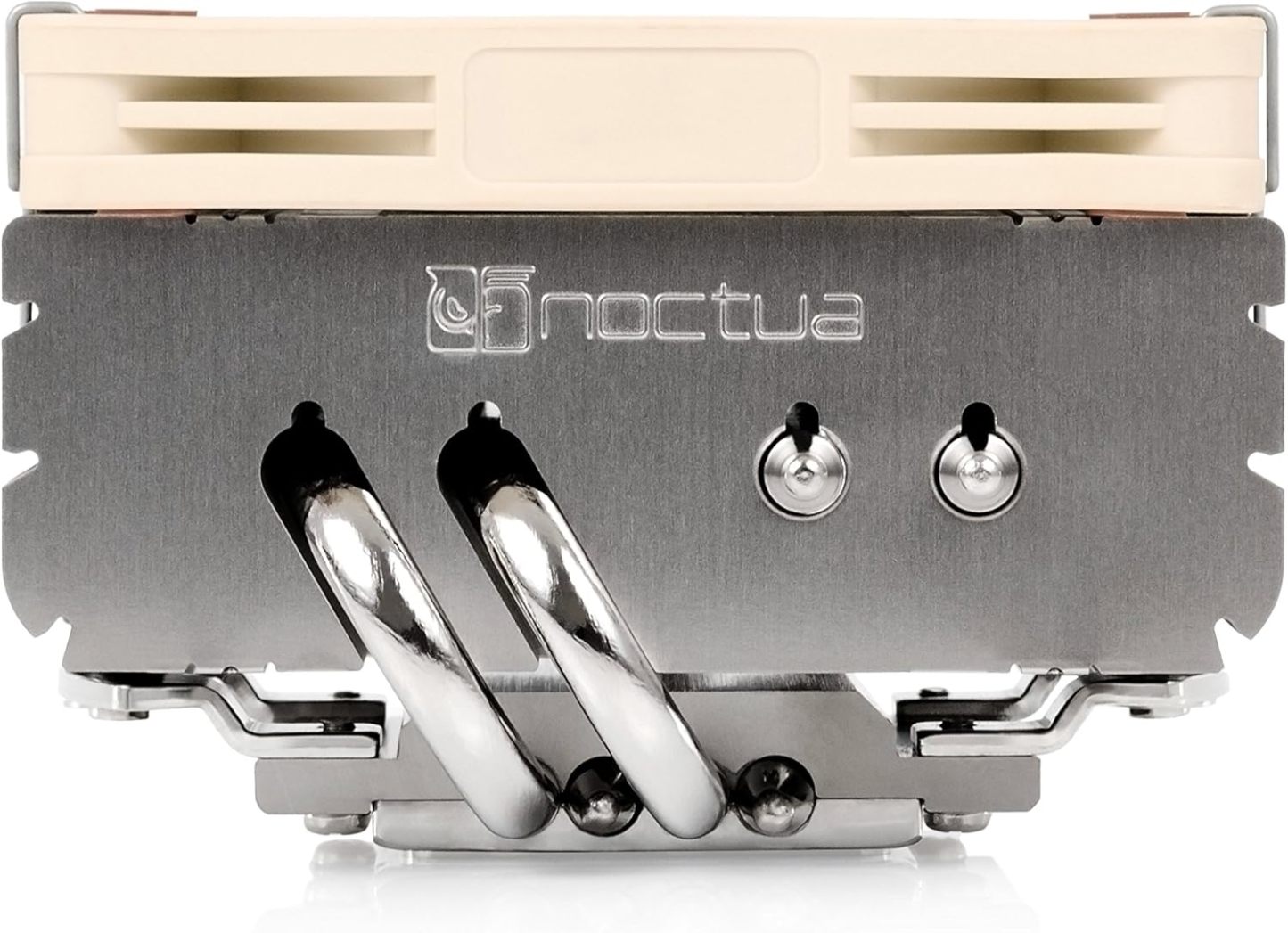

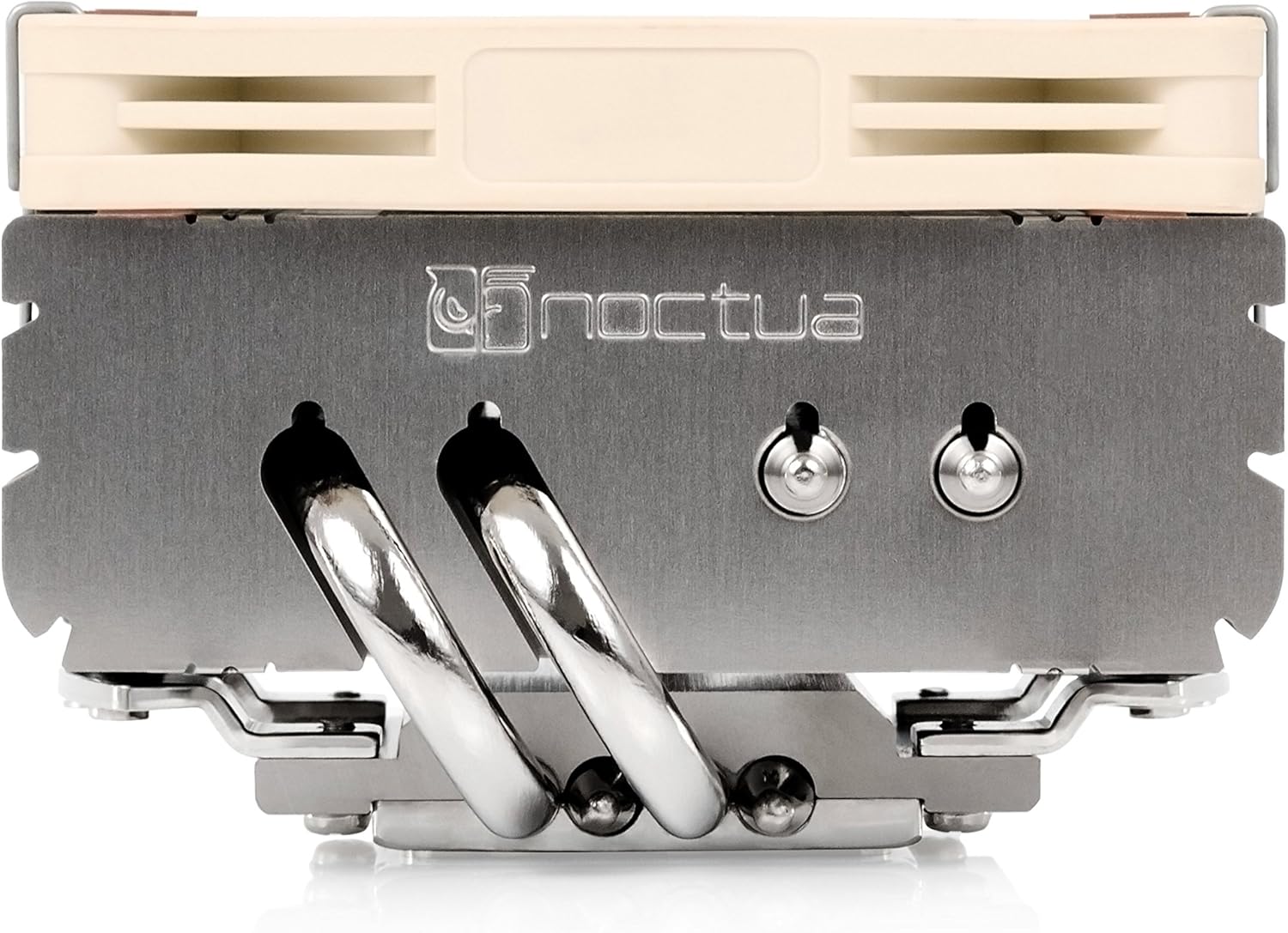

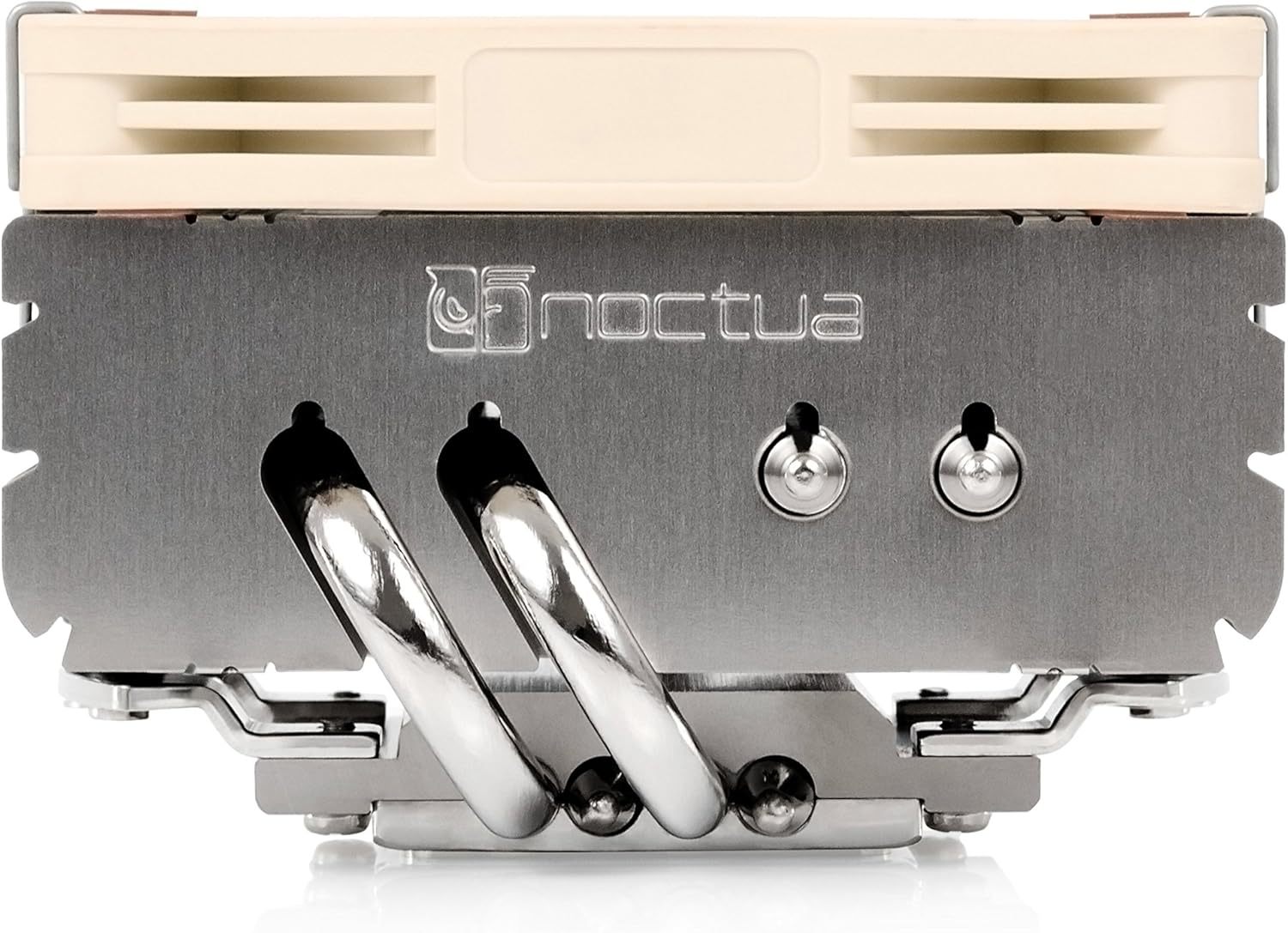

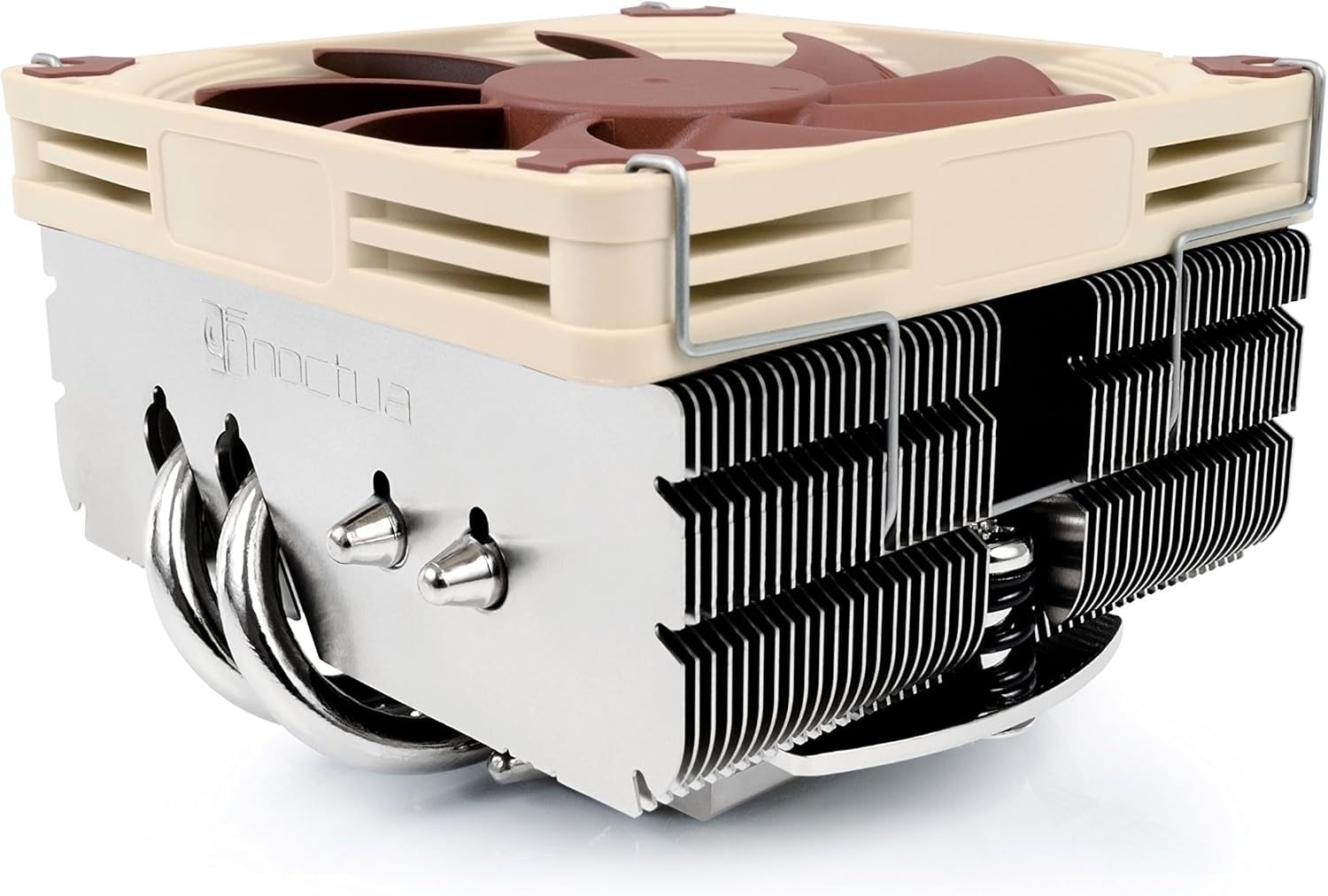

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers.With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which ensures 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors.Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet.Topped off with the professional SecuFirm2 multi-socket mounting system for Intel and AMD, and Noctua’s renowned NT-H1 thermal compound, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

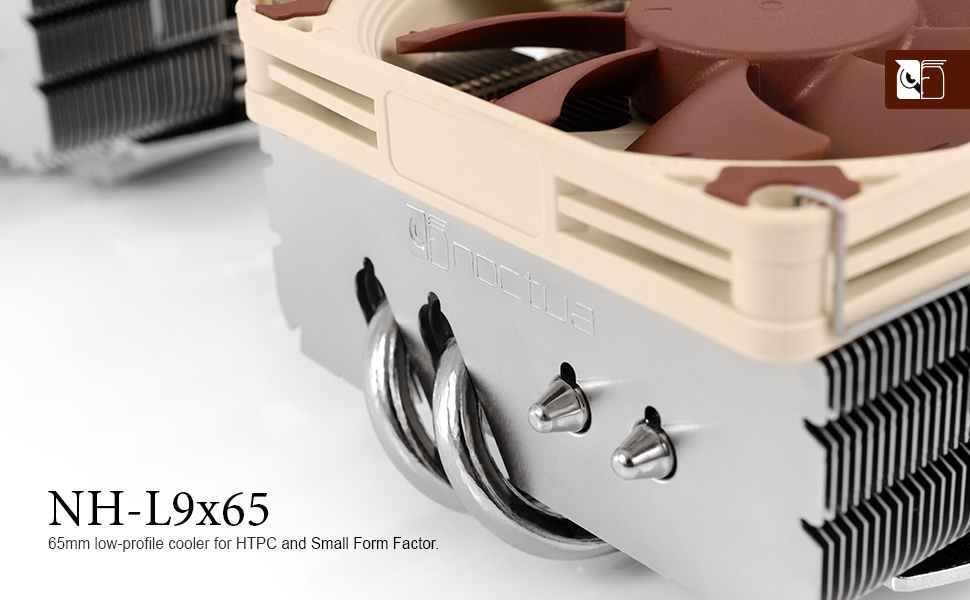

NH-L9x65

65mm low profile

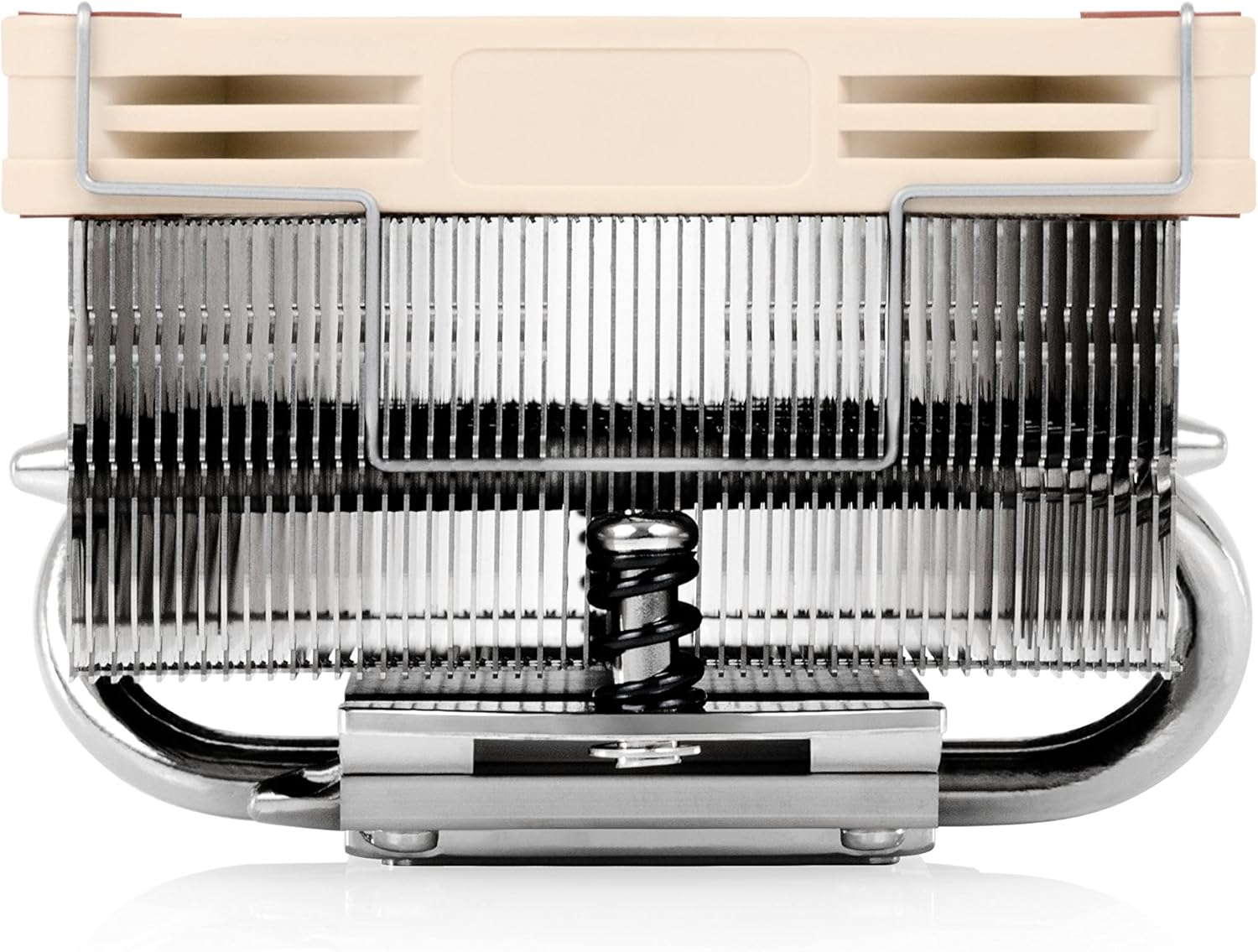

Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.

NH-L9x65 RAM

100% RAM compatibility

The NH-L9x65 has a 95x95mm footprint that complies exactly to the Intel LGA17xx/1200 socket keep-out zone.This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, making it fully compatible with tall memory modules.

NH-L9x65 PCIe

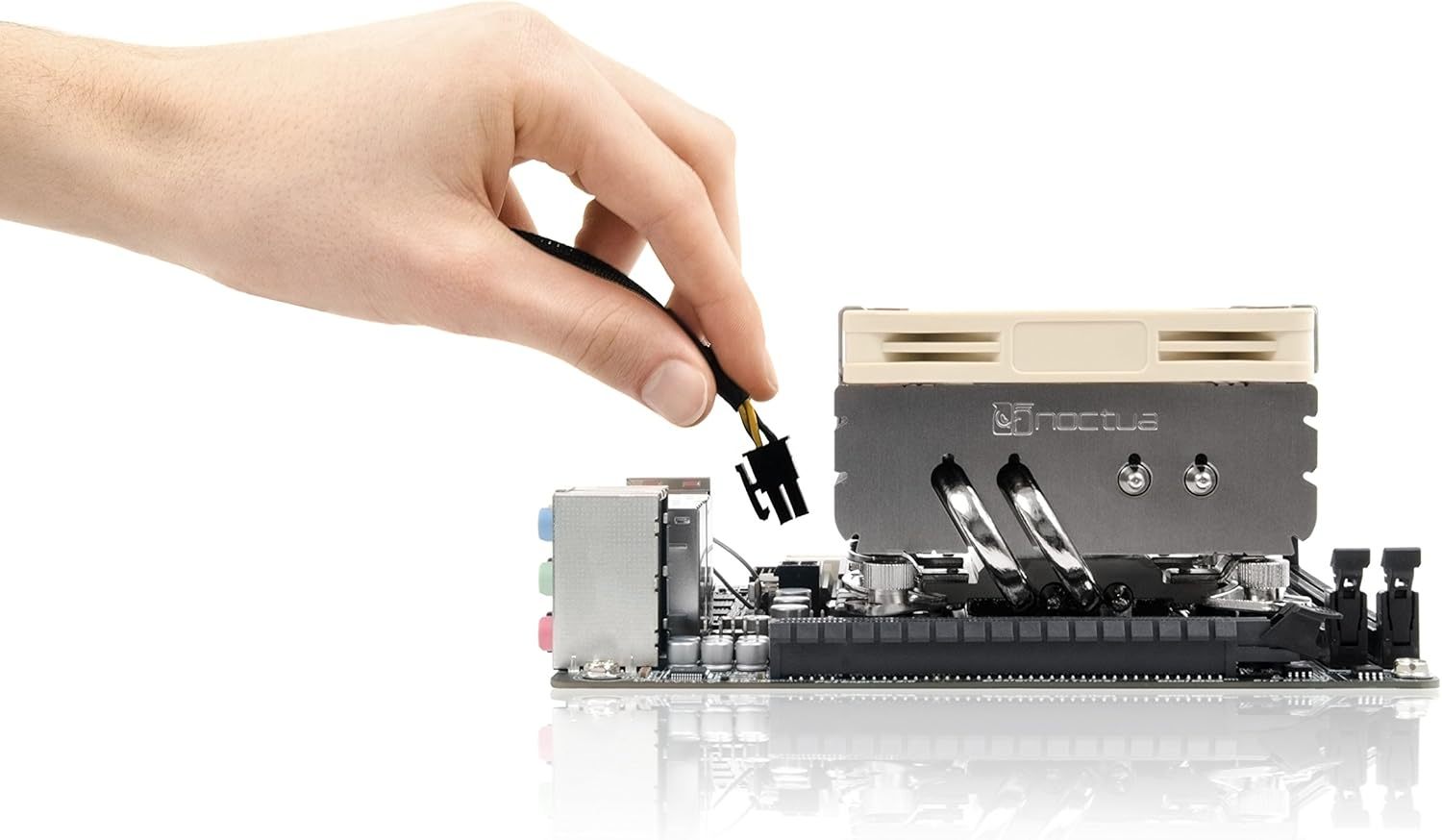

100% compatibility with PCIe cards on mini-ITX

Many Intel LGA17xx/1200 based mini-ITX mainboards have the PCIe slot sitting close to the 95x95mm socket zone.While larger coolers that exceed this zone may block the PCIe slot, the 95x95xmm sized NH-L9x65 provides full compatibility with PCIe cards.

NT-H1

NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Measurements

Height (without fan): 51 mm
Width (without fan): 95 mm
Depth (without fan): 95 mm
Height (with fan): 65 mm
Width (with fan): 95 mm
Depth (with fan): 95 mm
Weight (without fan): 340 g
Weight (with fan/s): 413 g

Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Cooler Specifications

Please Note

The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments.While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.

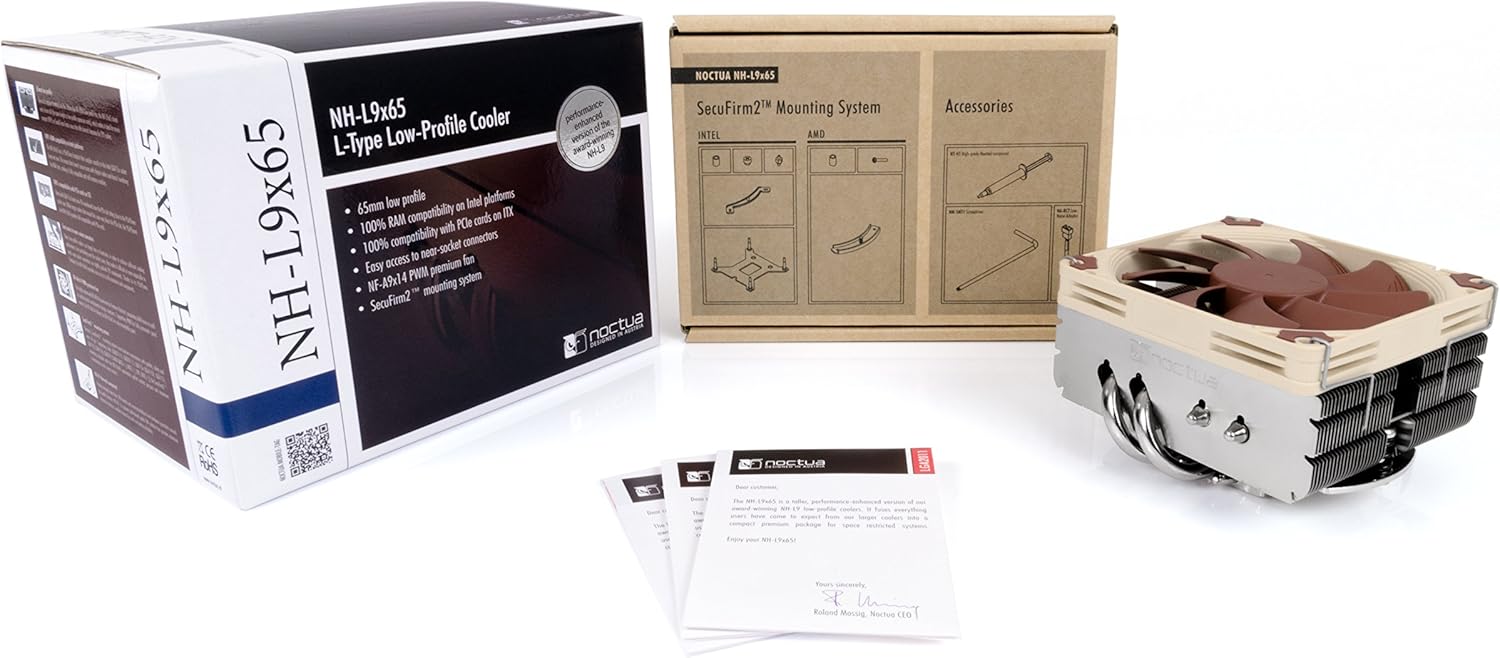

Scope of delivery

NF-A9x14 PWM premium fan
NA-RC7 Low-Noise Adaptor (L.N.A)
NT-H1 high-grade thermal compound
SecuFirm2 mounting kit
Noctua Metal Case-Badge

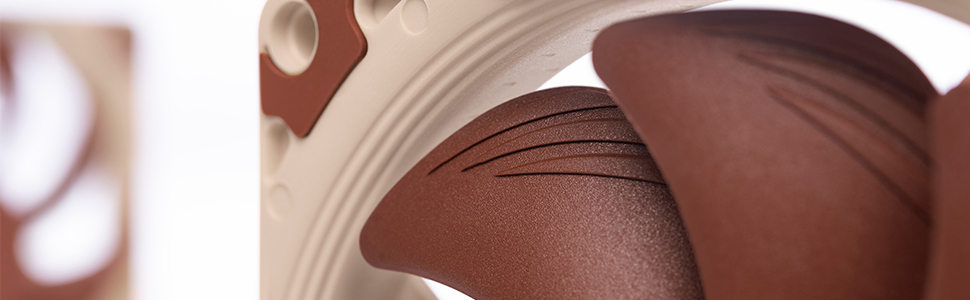

NF-A9x14 PWM premium fan

The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9x65 to stay remarkably quiet.
