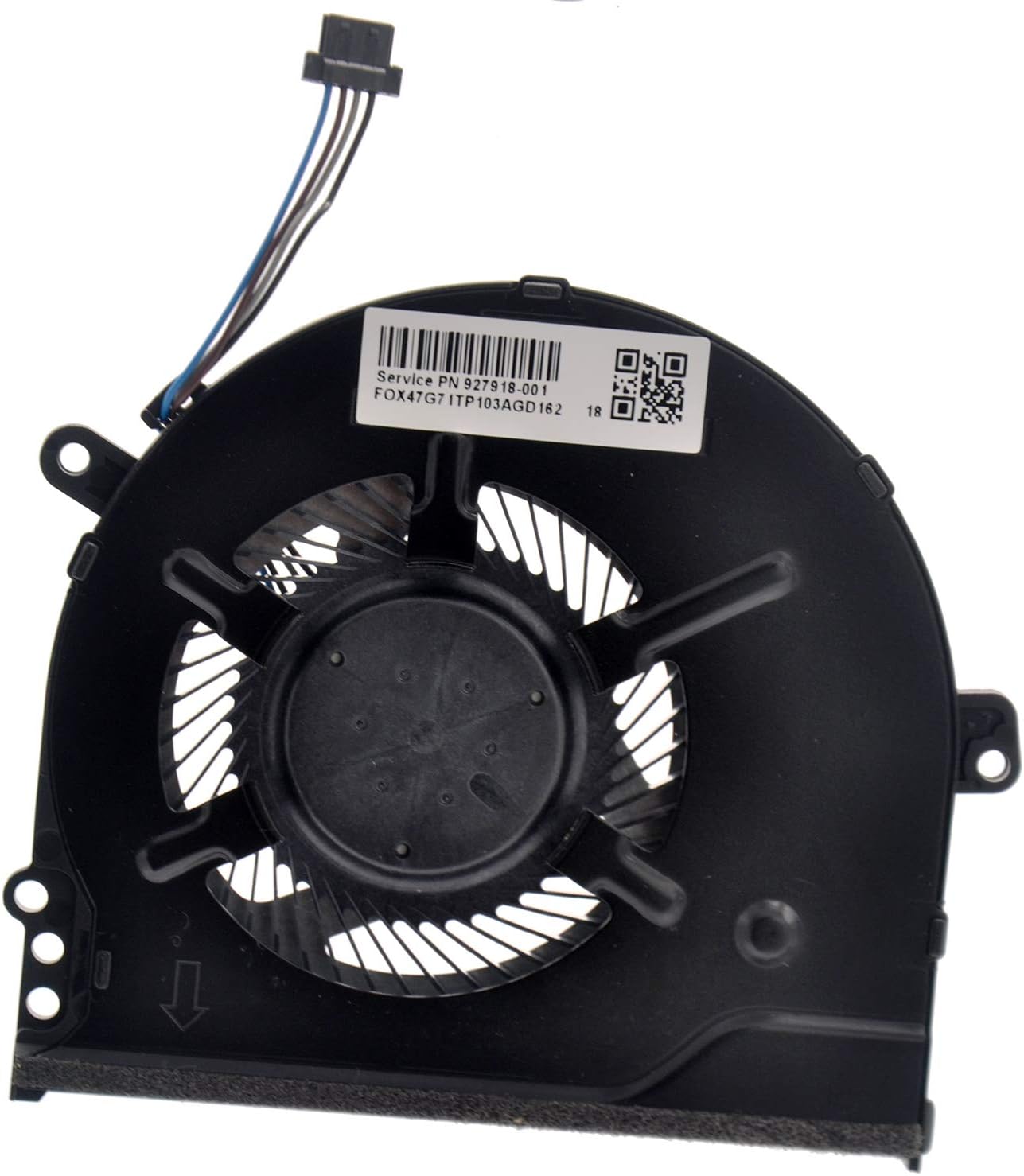

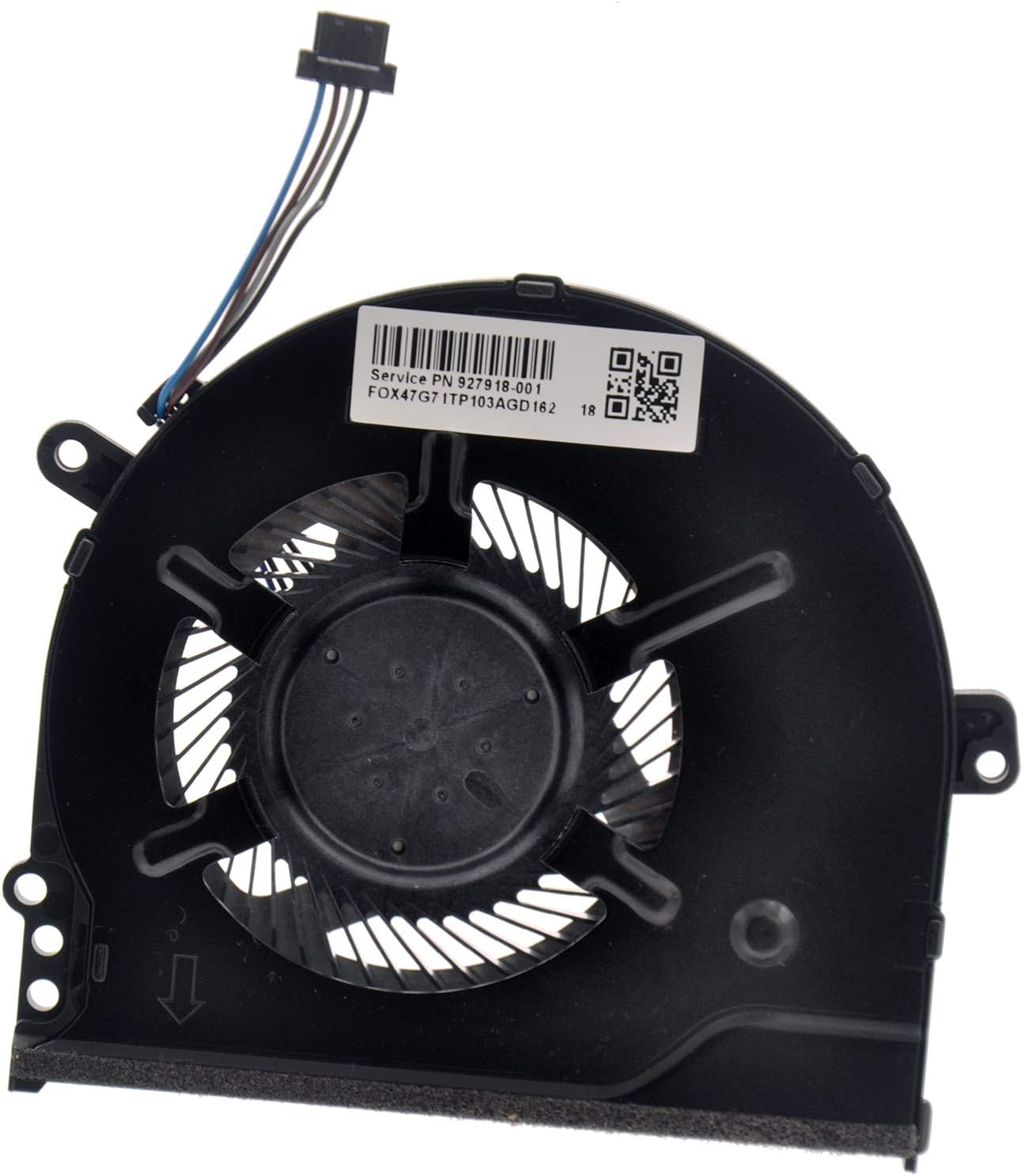

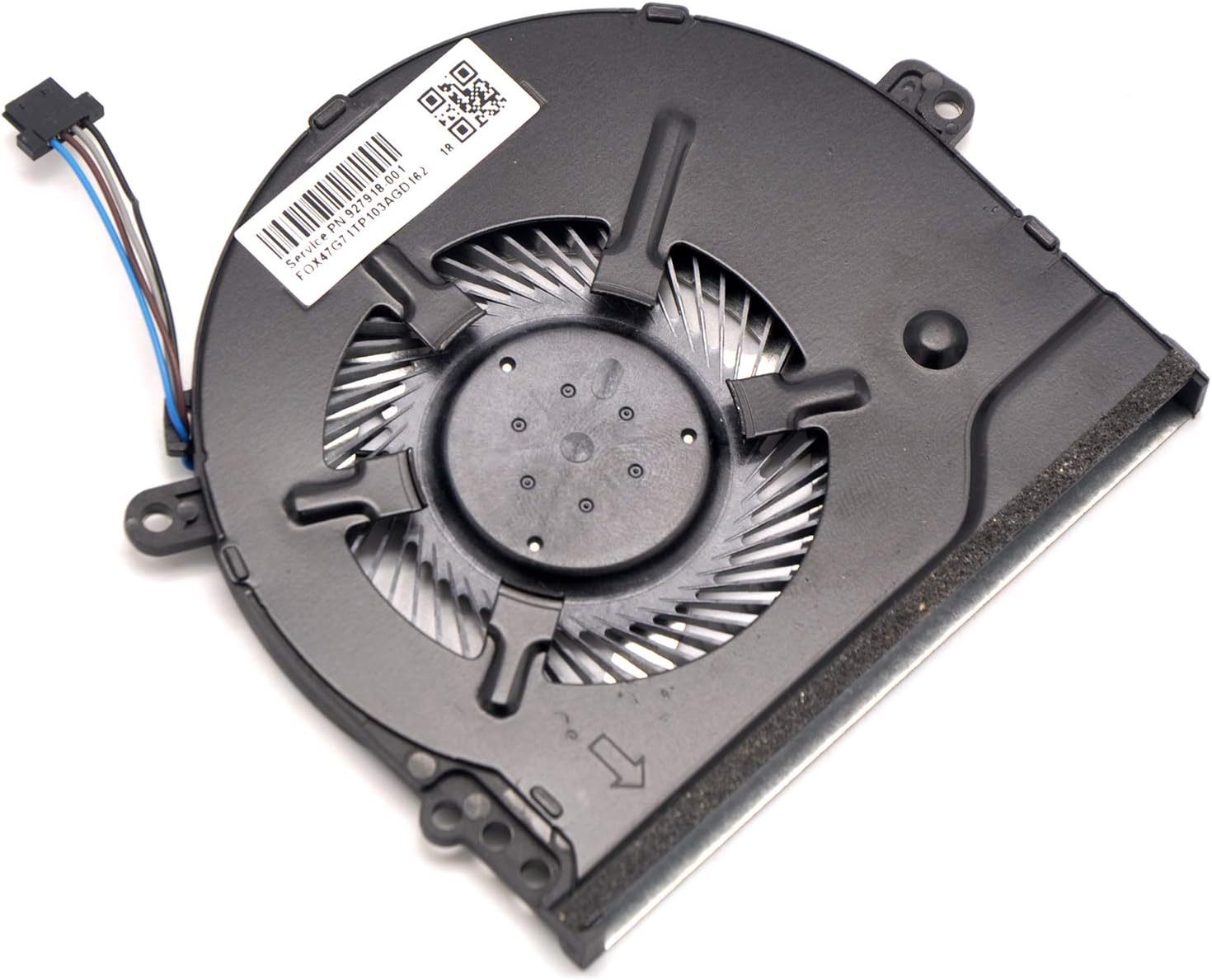

CPU Cooling Fan927918-001 Replacement for HP 15-CC 15-CK 14-BP 14-BK 15T-CC 14-BP 15-CC123CL 15-CK069TX 14-BK069SA

This is a OEM Cooling Fan for 15-CC 14-BK TPN-Q189 TPN-Q191 TPN-Q201 with UMA Integrated Graphics series, this is the cooling fan for CPU processor, attaches to your existing heatsink.

If your PC fan is running very loud or not functioning then a replacement may be needed.

The fan uses an integrated flex cable to connect to the mainboard.The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required.

Specifications:
Direct Current: DC 5V / 0.5A
Color: Black
Connection: 4-pin 4-wire, Wire-to-Board
Status: BRAND NEW and Unused from OEM factory.

Compatible Part Number(s):

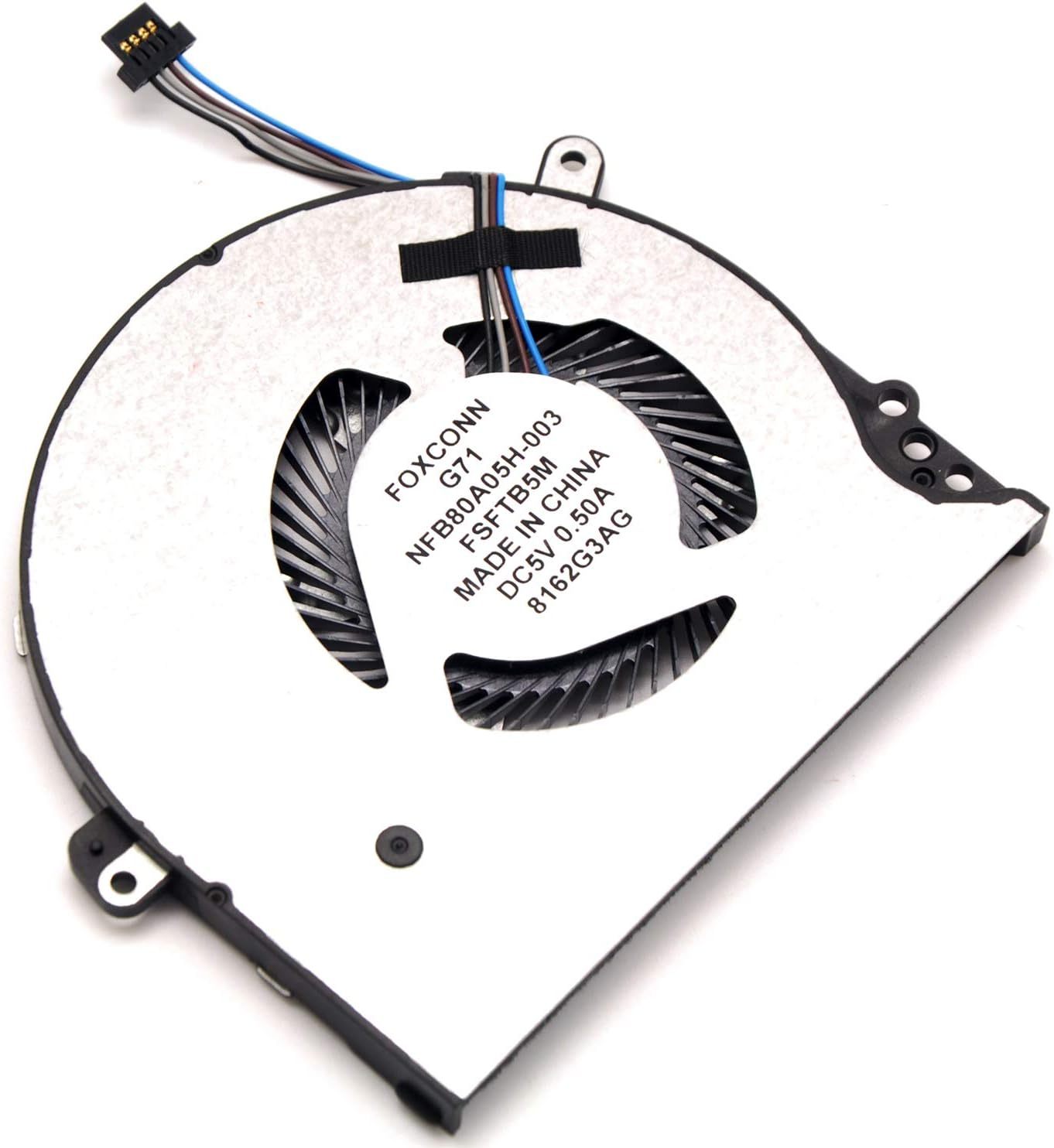

FSFTB5M
NFB80A05H-003.
NS75000-16K11
SPS#:927918-001

Reference compatible with TPN-Q189 TPN-Q191 TPN-Q201:
- 15-CK series: 15-CK0xx, 15-CK069TX, 15-CK063TX, 15-CK013CA, 15-CK019TX, 15-CK068TX, 15-CK075NR, 15-CK004NI, 15-CC500 ...
15-CC series: 15-CC563ST, 15-CC123CL, 15-CC023CL, 15-CC665CL, 15-CC060WM, 15-CC050WM, 15-CC555NR, 15-CC510NR, 15-CC561ST, 15-CC055OD, 15-CC152OD, 15-CC500, 15-CC129TX, 15-CC610MS ...
- 14-BK series: 14-BK069SA, 14-BK091ST, 14-BK154SA, 14-BK063SA, 14-BK061ST, 14-BK100, 14-BK000 ...
- 15T-CC series: 15T-CC500, 15T-CC000 CTO
14-BP series: 14-BP060SA, 14-BP0xx, 14-BP062SA, 14-BP056SA, 14-BP000, 14-BP100
- 14T-BP series: 14T-BP000
- 14s-BE series: 14s-BE100

What's in the box:
1x CPU Cooling Fan
1x Thermal Grease
